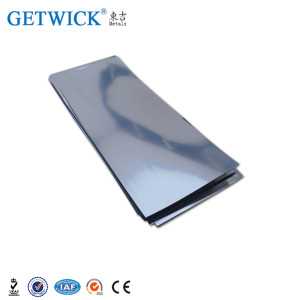

Polished Pure 99.95% Tungsten Sheet and Tungsten Alloy Sheet for Sale

Categories	TUNGSTEN SHEET
Brand	GETWICK 東吉
Model	W1
Material	Tungsten
Purity	99.95% min.
Standard	ASTM B760
Grade	W1
Shape	tungsten sheet, tungsten plate
Working temperature	above 2000Dc
MOQ	1kg
Surface	black, chemical cleaning, polished
Feature	high temperature resistance
Products Name	High Purity Tungsten Sheet Plate Sputtering Target
FOB port	Shanghai. Guangzhou, Tianjin
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	May 4,2024

Contact Now

Favorites

Detail Information

Polished Pure 99.95% Tungsten Sheet and Tungsten Alloy Sheet for Sale

1.Grade: W1

2.Size:0.05mm min.( Thickness ) x 400mm max.( Width ) x 1000mm max.( Length )

3.Purity: 99.95%~99.97%
4.Standard: ASTM B760 or GB3875-83

5.ASTM B760 as follows:

Chemical composition
element	Max
C	0.01
O	0.01
N	0.01
Fe	0.01
Ni	0.01
Si	0.01

6.Thickness Tolerance

Standard Width inch (mm)	Standard Thickness inch(mm)	Thickness Tolerance inch (mm)
≤12(305)	0.001-0.010 (0.05-0.25)	±0.001(±0.0254)
	>0.010-0.020 (0.25-0.51)	±0.002(±0.0508)
	>0.20(0.51)	±10%
>12-24(305-610)	>0.010-0.025(0.25-0.64)	±0.0025(±0.0635)
	>0.025(0.64)	±10%

Features:
1.Tungsten sheet adopts the material tungsten with a high purity of 99.9%;
2.Surface of tungsten sheet has metallic silver luster;
3.Its radiation shielding effect is equivalent to that of lead plate;
4.The density of tungsten sheet is higher than 19.1g/cm3;
5. Our tungsten sheet can be as thin as 0.05mm ;
6. Tungsten sheet from Achemetal is under vacuum annealing and leveling before delivery;
7. Our tungsten sheet is approved by ASTM B 386-2003 and GB 3876-2007 and GB 3877-2006.
