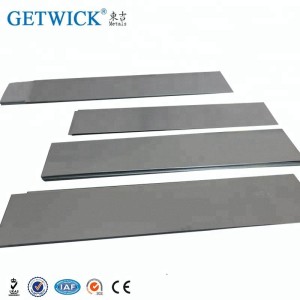

ASTM B760 Factory pure tungsten sheet plate for sale

Categories	TUNGSTEN SHEET
Brand	GETWICK 東吉
Model	W1
Material	Tungsten
Purity	99.95% min.
Standard	ASTM B760
Grade	W1
Shape	tungsten sheet, tungsten plate
Working temperature	above 2000Dc
MOQ	1kg
Surface	black, chemical cleaning, polished
Feature	high temperature resistance
Products Name	ASTM B760 Factory pure tungsten sheet plate
FOB port	Shanghai. Guangzhou, Tianjin
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Apr 20,2024

Contact Now

Favorites

Detail Information

ASTM B760 Factory pure tungsten sheet plate for sale

1.Applications:
* For producing electric light source parts,components of electric vacuum;
* For producing W-boats,heat shield and heat bodies in high temperature furnace.

2.Size: 0.05mm min.( Thickness ) x 400mm max.( Width ) x 1000mm max.( Length )

3.Purity: 99.95%min.
4.Standard: ASTM B760 or GB3875-83

5.ASTM B760 as follows:

Chemical composition
element	Max
C	0.01
O	0.01
N	0.01
Fe	0.01
Ni	0.01
Si	0.01

6.Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.

Normal specification we can provide:

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	600
0.2~0.6	400	600
0.7~0.9	400	800
1~2	450	800
2~10	450	600
10~15	450	500
15~25	300	500

7.Our products is available in a wide range of forms including nut, screw ,ring ,wire, foil, sheet,rod, strip, plate, tube, alloys according to Standard ASTM AMS ASME MIL DMS JIS GB, etc.

8.If you have any needing or question ,pls tell me and i would like you try my best to help you.Looking forward to hearing from you.
