We mainly produce,develop and sell Tungsten and Molybdenum plates ,sheets,foils,strips and boats,crucibles,vacuum furances and their subassemblies,sputtering targets,deep processing products ect, and Tantalum,Niobium,Titanium,Nickel,Zirconium,Chromium ect.other rare metals.The products are widely used in rare-earth,vacuum furance,glass fiber,industrial ceramic,chemical petroleum,aerospace ect,industries.

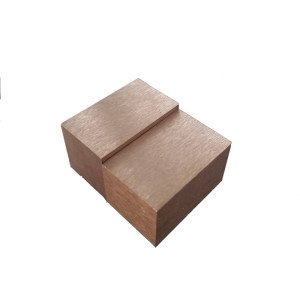

Tungsten copper sheet are very popular used as EDM electrode. This material has both tungsten and copper's characters, for example: copper is good for electrical conductivity, tungsten is good for the hardness. Tungsten copper sheet for EDM is made by vacuum infiltration technology, which has very good physical and mechanical properties.
WCu is easy to machine, Is extremely Dimensionally stable and has a high thermal conductivity.The coefficient of expansion is minimized.
Feature of different composition
CuW50 and CuW55 have the lowest Tungsten contents. They are both good switching and contact materials for oil filled devices. CuW55 is also used for arcing contacts in oil circuit breakers and arcing edges of selectors and switchblades in transformer tap changers.
CuW65 and CuW70 are used as contact materials in severe arcing applications including gas, oil and some air circuit breakers. They are also used for arcing edges on selectors and reversing switch blades.
CuW75 and CuW80 are used as contact materials under extreme arcing conditions. Applications include arcing contacts in gas and oil circuit breakers, contactors and transformer tap changers, arcing plates and arc runners in power switching equipment.
CuW85 and CuW90 have the highest Tungsten content. They are used as contact materials where resistance to contact welding, sticking and arc erosion are critical. They also provide satisfactory heat and current interruption capabilities. Typical applications are power vacuum switches and high power spark gap electrodes, etc
Composition mark for tungsten copper sheet
45 copper 55 tungsten
32 copper 68 tungsten
30 copper 70 tungsten
25 copper 75 tungsten
22 copper 78 tungsten
20 copper 80 tungsten
15 copper 85 tungsten
10 copper 90 tungsten
Specification of tungsten copper sheet
Regular Specifications of tungsten copper sheet
Specification could be customized according to customers’ requirement.
1.We could supply products according to customer's drawing and request, and customer satisfaction is high.
2.The chemical content of matetial accord with the national quality control standard, and special processing technology makes our products more competitive advantage.
3.The appearance of the product is beautiful.
4. We have perfect after-sales service for our customers.
Copper tungsten alloy is used in a product or part requires high heat resistance, low thermal expansion and high electrical or thermal conductivity. Tungsten copper is used to fabricate engines and electrical devices. It is also used in the fields of aviation and spaceflight. Electrodes, refractory parts, heat sinks, rocket parts and electrical contacts are all made by copper tungsten alloy. The alloy is also made into sheet metal, tubing and plate metal. Copper tungsten alloy is used to make contacts for both high and medium voltage electrical devices, and for high speed steel devices and switches.
1.Carton with water proof paper and protective foam inside.
2. Standard export case.
3. As consumers' requirements.
1. Sample order: L/C, Paypal, Escrow and T/T100% are accepted.
2. Big order: T/T 50%, full payment advanced, L/C are accepted.
Please choose which terms is convenient for you. Depends on your order, we also will recommend the most suitable way.
Welcome to visite our company and make cooperation~~
Choose Getwick,Choose quality
Choose Getwick,Choose Service
Choose Getwick,Choose Speed
If you have any questions or confuse, please feel free to contact with me.
