CategoriesTungsten and Alloy Sheet Plate
AlbumView larger image
BrandGETWICK 東吉
ModelW1
MaterialTungsten
Purity99.95% min.
StandardASTM B760
GradeW1

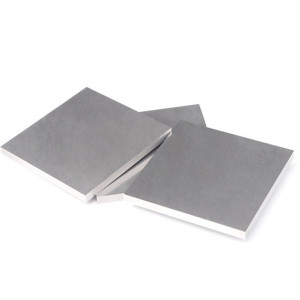

Shapetungsten sheet, tungsten plate
Working temperatureabove 2000Dc
MOQ1kg
Surfaceblack, chemical cleaning, polished
Featurehigh temperature resistance
Products NameGETWICK W1 New Product Tungsten Sheet/Plate Price
FOB portShanghai. Guangzhou, Tianjin
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-02-23
Detail Information

1.Applications:
      *  For producing electric light source parts,components of electric vacuum;
      *  For producing W-boats,heat shield and heat bodies in high temperature furnace.

2.Size: 0.05mm min.( Thickness ) x 400mm max.( Width ) x 1000mm max.( Length )

3.Purity: 99.95%min.
4.Standard: ASTM B760 or  GB3875-83

5.ASTM B760 as follows:

Chemical    composition

element

Max

C

0.01

O

0.01

N

0.01

Fe

0.01

Ni

0.01

Si

0.01

6.Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.

Normal specification we can provide:

Tungsten Plate/Sheet /Foil

 Thickness(min) mm

       Width(max) mm

Length(max) mm

0.05

150

500

0.06~0.09

250

500

0.1

300

500

0.12

320

550

0.15

350

600

0.2~0.6

400

600

0.7~0.9

400

800

1~2

450

800

2~10

450

600

10~15

450

500

15~25

300

500

Tolerance  Chart(mm)

Thickness

Width

Length

Range

Tolerance

Range

Tolerance

Range

Tolerance

0.05~0.2

+/-0.01

30~200

+/-1

50~400

+/-2

0.2~0.3

+/-0.02

50~300

+/-1

50~400

+/-2

0.3~0.6

+/-0.03

50~300

+/-2

50~600

+/-2

0.6~1.0

+/-0.04

50~300

+/-2

50~1000

+/-3

1.0~2.0

+/-0.05

50~300

+/-2

50~1000

+/-3

2.0~4.0

+/-0.1

50~300

+/-2

50~1000

+/-3

4.0~6.0

+/-0.3

50~300

+/-2

50~600

+/-3

6.0~

+/-0.5

50~300

+/-3

50~600

+/-3

Main Comp.W≥99.95

Other Content≤

Fe

0.0026

Al

0.0006

Si

0.001



Ca

0.001

Ni

0.0009

O

0.0018



Cu

0.0005

N

0.0015

Pb

0.0001



Sn

0.0001

Sb

0.001

As

0.001



Cd

0.0001

Mg

0.0006

C

0.002



Bi

0.0001

Mo

0.003





Production Process:

pure tungsten plate with reasonable price
