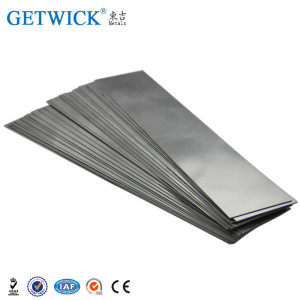

China factory supplier 99.95% pure tungsten sheet plate

China factory supplier 99.95% pure tungsten sheet plate

China factory supplier 99.95% pure tungsten sheet plate
China factory supplier 99.95% pure tungsten sheet plateChina factory supplier 99.95% pure tungsten sheet plateChina factory supplier 99.95% pure tungsten sheet plateChina factory supplier 99.95% pure tungsten sheet plateChina factory supplier 99.95% pure tungsten sheet plate
CategoriesTUNGSTEN SHEET
AlbumView larger image
BrandGETWICK 東吉
ModelW1
MaterialTungsten
Purity99.95% min.
StandardASTM B760
GradeW1
Shapetungsten sheet, tungsten plate
Working temperatureabove 2000Dc
MOQ1kg
Surfaceblack, chemical cleaning, polished
Featurehigh temperature resistance
Products NameGETWICK W1 New Product Tungsten Sheet/Plate Price
FOB portShanghai. Guangzhou, Tianjin
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2019-08-23
Detail Information
China factory supplier 99.95% pure tungsten sheet plate

Item: tungsten plate & sheet

MaterialsW1,W2

Purity99.95%

Density19.35g/cm³

Melting Point3410℃

Surface: shiny, alkaline washed, satin, or as-rolled condition; dependent upon thickness and width parameters.

Feature:

tungsten is the highest melting point of all metals.

low coefficient of thermal expansion.

very high level of dimensional stability.

Main Comp.W≥99.95

Other Content≤

Fe

0.0026

Al

0.0006

Si

0.001



Ca

0.001

Ni

0.0009

O

0.0018



Cu

0.0005

N

0.0015

Pb

0.0001



Sn

0.0001

Sb

0.001

As

0.001



Cd

0.0001

Mg

0.0006

C

0.002



Bi

0.0001

Mo

0.003




Normal specification we can provide:

Tungsten Plate/Sheet /Foil

 Thickness(min) mm

       Width(max) mm

Length(max) mm

0.05

150

500

0.06~0.09

250

500

0.1

300

500

0.12

320

550

0.15

350

1000

0.2~0.6

400

1000

0.7~0.9

400

1000

1~2

450

1000

2~10

450

600

10~15

450

500

15~25

300

500


Tolerance  Chart(mm)

Thickness

Width

Length

Range

Tolerance

Range

Tolerance

Range

Tolerance

0.05~0.2

+/-0.01

30~200

+/-1

50~400

+/-2

0.2~0.3

+/-0.02

50~300

+/-1

50~400

+/-2

0.3~0.6

+/-0.03

50~300

+/-2

50~600

+/-2

0.6~1.0

+/-0.04

50~300

+/-2

50~1000

+/-3

1.0~2.0

+/-0.05

50~300

+/-2

50~1000

+/-3

2.0~4.0

+/-0.1

50~300

+/-2

50~1000

+/-3

4.0~6.0

+/-0.3

50~300

+/-2

50~600

+/-3

6.0~

+/-0.5

50~300

+/-3

50~600

+/-3

Production Process

pure tungsten plate with reasonable price

pure tungsten plate with reasonable price

Application

For producing electric light source parts and electric vacuum components

For producing heating elements and refractory parts in high temperature furnaces

Used as electrodes in the field of rare earth metal industry

Used in military of some aspects

For medical aspects

Be used to make decorations and etc.


pure tungsten plate with reasonable price
