99.95% Pure Tungsten Plate for Electronic

99.95% Pure Tungsten Plate for Electronic
99.95% Pure Tungsten Plate for Electronic
99.95% Pure Tungsten Plate for Electronic99.95% Pure Tungsten Plate for Electronic99.95% Pure Tungsten Plate for Electronic99.95% Pure Tungsten Plate for Electronic99.95% Pure Tungsten Plate for Electronic
CategoriesTUNGSTEN PLATE
AlbumView larger image
BrandGETWICK 東吉
ModelW1
Product name99.95% Pure Tungsten Plate for Electronic
Key wordsPure Tungsten Plate
SizeThick0.1mm min*W400mm max*L1000mm max
SurfaceAlkali wash and grinding
Density19.3g/cm3
Purity99.95% min
Materia99.95% pure tungsten
Melting point3260
Operating temperature2000-2600
ApplicationElectronics
FOB portShanghai
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time2020-03-31
Detail Information

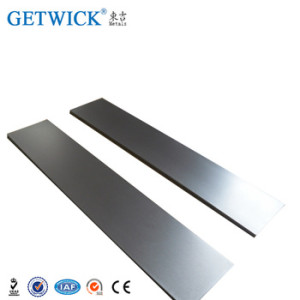

99.95% Pure Tungsten Plate for Electronic

general

We mainly produce,develop and sell Tungsten and Molybdenum  plates ,sheets,foils,strips and boats,crucibles,vacuum furances and their subassemblies,sputtering targets,deep processing products ect, and Tantalum,Niobium,Titanium,Nickel,Zirconium,Chromium ect.other rare metals.The products are widely used in rare-earth,vacuum furance,glass fiber,industrial ceramic,chemical petroleum,aerospace ect,industries.

1.Applications:

      *  For producing electric light source parts,components of electric vacuum;
      *  For producing W-boats,heat shield and heat bodies in high temperature furnace.

2.Size: 0.1~50mm( Thickness ) x 50~450mm( Width ) x 100~1000mm( Length )

3.Purity: 99.95%,99.99% and 9.999%
4.Standard: ASTM B760 or  GB3875-83

5.ASTM B760 as follows:

Chemical    composition



element

Max

Tolerance

C

0.01

±0.002

O

0.01

10%

N

0.01

+0.0005

Fe

0.01

+0.001

Ni

0.01

+0.01

Si

0.01

+0.01

6.Thickness Tolerance

Standard Width  inch (mm)

Standard Thickness inch(mm)

Thickness Tolerance inch (mm)

≤12(305)

0.005-0.010 (0.13-0.25)

±0.001(±0.0254)



>0.010-0.020 (0.25-0.51)

±0.002(±0.0508)



>0.20(0.51)

±10%

>12-24(305-610)

>0.010-0.025(0.25-0.64)

±0.0025(±0.0635)



>0.025(0.64)

±10%

7.Our products is available in a wide range of forms including nut, screw ,ring ,wire, foil, sheet,

rod, strip, plate, tube, alloys according to Standard ASTM AMS ASME MIL DMS JIS GB, etc.

8.As a DNV certified ISO9001:2000 company, we have strict quality control system and provide

professional service to our customers around the world. Our customers are in aerospace industry,

chemical equipment industry, medical industry and civilian industry in USA, UK, Germany, Sweden

and some other countries.
