hot sale thermal evaporation molybdenum boat price

hot sale thermal evaporation molybdenum boat price

hot sale thermal evaporation molybdenum boat price
hot sale thermal evaporation molybdenum boat pricehot sale thermal evaporation molybdenum boat pricehot sale thermal evaporation molybdenum boat pricehot sale thermal evaporation molybdenum boat pricehot sale thermal evaporation molybdenum boat price
CategoriesMOLYBDENUM BOAT
BrandGETWICK 東吉
ModelMo1,MLa,TZM
Key productMolybdenum Boat
GradeMo1, TZM, MLa
Working temperature1300-1400 Centigrade
Purity99.95% Min
Density10.2g/cm3
DimensionUser's demand
FeatureHigh temperature resistance
TechniqueWelded
ApplicationIndustry
FOB portShanghai, Guangzhou
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update TimeMar 29,2024
Detail Information

hot sale thermal evaporation molybdenum boat price

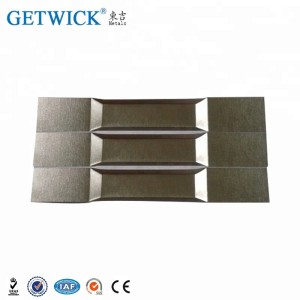

Molybdenum Evaporation Boat Straight and Flat Type.We offer 99.95% Min Pure Molybdenum evaporation boat: straight boat, flat type in stock selling.Mass in Stock, Competitive Price and Quick Delivery.Molybdenum is a particularly stable metal that is also suitable for use at high temperatures. When doped with lanthanum oxide (ML), molybdenum becomes even more ductile and corrosion-resistant.

1.Grade:Mo1

2.density:10.2g/cm3

3.standard: ASTM B386

4.Mo content:≥99.95%

5.Material: molybdenum evaporation boat

6.Type: Straight and Flat

7.Process Method: Stamping

Size

Detailed Specification:

Item Code

Width

(mm)

Length

(mm)

Thickness

(mm)

Recess Length

(mm)

Recess Depth

(mm)

Vol.

(cc)

W310

10

100

0.30

50

2.1

0.54

W315

15

100

0.30

50

2.7

1.16

W510

10

100

0.50

50

2.0

0.48

Normally evaporation boats are used for high wettability materials.

We also have V tubOval Tub and Sphere tub evaporation boats

How to choose

Our materials for evaporation boats have very low evaporation rates at evaporation temperature and an extremely low vapor pressure compared to the coating materials themselves. As a result, no material from the boat ends up in the deposited layer even during long evaporation cycles.

How to choose a right Evaporation boats among material tungsten, molybdenum, tantalum and niobium, here below are some chart that might be helpful:

 Hot sale Molybdenum folding Boat for Evaporation Source  Hot sale Molybdenum folding Boat for Evaporation Source

        Evaporation Rate VS Temperature                      Vapor Pressure VS Temperature


Hot sale Molybdenum folding Boat for Evaporation Source

 Specific electric resistance VS Temperature


Application

1. Vacuum Furnace

2. Ceramics industry

3. Can also be used in high temperature furnace and glass industries, etc.

Feature

1. Low thermal expansivity

2. High using temperature

3. Good corrosion resistence

4. High strength

5. Low electrical resistivity

6. Manufacturing based on customer’s request
