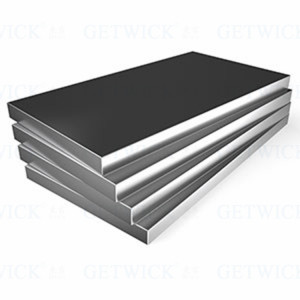

GETWICK 99.95% pure w1 tungsten sheet for sale

Categories	TUNGSTEN SHEET
Brand	GETWICK 東吉
Model	W1
Material	Tungsten
Purity	99.95% min.
Standard	ASTM B760
Grade	W1
Shape	tungsten sheet, tungsten plate
Working temperature	above 2000Dc
MOQ	1kg
Surface	black, chemical cleaning, polished
Feature	high temperature resistance
Products Name	GETWICK 99.95% pure w1 tungsten sheet for sale
FOB port	Shanghai. Guangzhou, Tianjin
Terms of Payment	L/C, D/A, D/P, Western Union, MoneyGram, T/T, Paypal
Update Time	Apr 20,2024

Contact Now

Favorites

Detail Information

GETWICK 99.95% pure w1 tungsten sheet for sale

1.Grade: W1

2.Size:0.05mm min.( Thickness ) x 400mm max.( Width ) x 1000mm max.( Length )

3.Purity: 99.95%~99.97%
4.Standard: ASTM B760

Tungsten Plate/Sheet /Foil
Thickness(min) mm	Width(max) mm	Length(max) mm
0.05	150	500
0.06~0.09	250	500
0.1	300	500
0.12	320	550
0.15	350	600
0.2~0.6	400	600
0.7~0.9	400	800
1~2	450	800
2~10	450	600
10~15	450	500
15~25	300	500

5.ASTM B760 as follows:

Chemical composition
element	Max
C	0.01
O	0.01
N	0.01
Fe	0.01
Ni	0.01
Si	0.01

6.Thickness Tolerance

Standard Width inch (mm)	Standard Thickness inch(mm)	Thickness Tolerance inch (mm)
≤12(305)	0.001-0.010 (0.05-0.25)	±0.001(±0.0254)
	>0.010-0.020 (0.25-0.51)	±0.002(±0.0508)
	>0.20(0.51)	±10%
>12-24(305-610)	>0.010-0.025(0.25-0.64)	±0.0025(±0.0635)
	>0.025(0.64)	±10%

Features:
1.Tungsten sheet adopts the material tungsten with a high purity of 99.9%;
2.Surface of tungsten sheet has metallic silver luster;
3.Its radiation shielding effect is equivalent to that of lead plate;
4.The density of tungsten sheet is higher than 19.1g/cm3;
5.Our tungsten sheet can be as thin as 0.05mm ;
6.Tungsten sheet from Achemetal is under vacuum annealing and leveling before delivery;
7.Our tungsten sheet is approved by ASTM B 386-2003 and GB 3876-2007 and GB 3877-2006.
